Modular Architecture.
Infinite Scale.
From a single pilot unit to a massive smart warehouse wall. One controller handles it all.
The "Lego" of Vending.
1 Phone connects to 128 Hubs (up to 384 Cabins). Each cabin supports a serial chain of 1028 Nodes (4 scales each). Endless possibilities. No cable mess.
A. The Brain: Your Phone
Venloop replaces expensive ($1000+) industrial PCs with the power of modern smartphones. Core: Android 12+ (Min. 4GB RAM). UI: Fluid 60fps React Native interface. Connectivity: Native 5G / LTE / WiFi / Bluetooth. Payments: Certified Tap to Pay on Android.
B. The Hub (Access Control)
The backbone of your machine. Controls up to 3 Locks. Real-time Door Open/Closed detection. Integrated Speaker. Chain up to 128 Hubs to a single controller.
C. The Node (Sensory Input)
Know exactly what's inside. Supports 4x Load Cells (Scales). 20g precision with up to 20kg capacity per scale. Built-in Temperature Sensor.
D. Connectivity Stack (MQTT)
Real-time, Event-Driven, Invisible. Protocol: Industry-standard MQTT via Websockets. Latency: < 50ms response time. Offline-First: Events are queued locally if connectivity is lost.
Deploy Anywhere. Even without power.
Battery Ops
- ⚡ 2 Days of autonomy.
- ⚡ 1000+ Lock openings on a single charge.
- ⚡ Zero Cables: Perfect for events, pop-ups, and festivals.
Form Factors
Retrofit existing cabinets or build custom furniture. The hardware is invisible.
Bring Your Own Furniture.
We provide the brain. You build the body.
Shopfitter Ready
We provide CAD files (.step) and drilling templates. Your shopfitter can build the machine from wood, steel, or marble.
Retrofit
Upgrade existing lockers by simply swapping the lock.
Partner Network
Need a full build? We work with certified metal & wood manufacturers to deliver turnkey solutions.
Start Building Today.

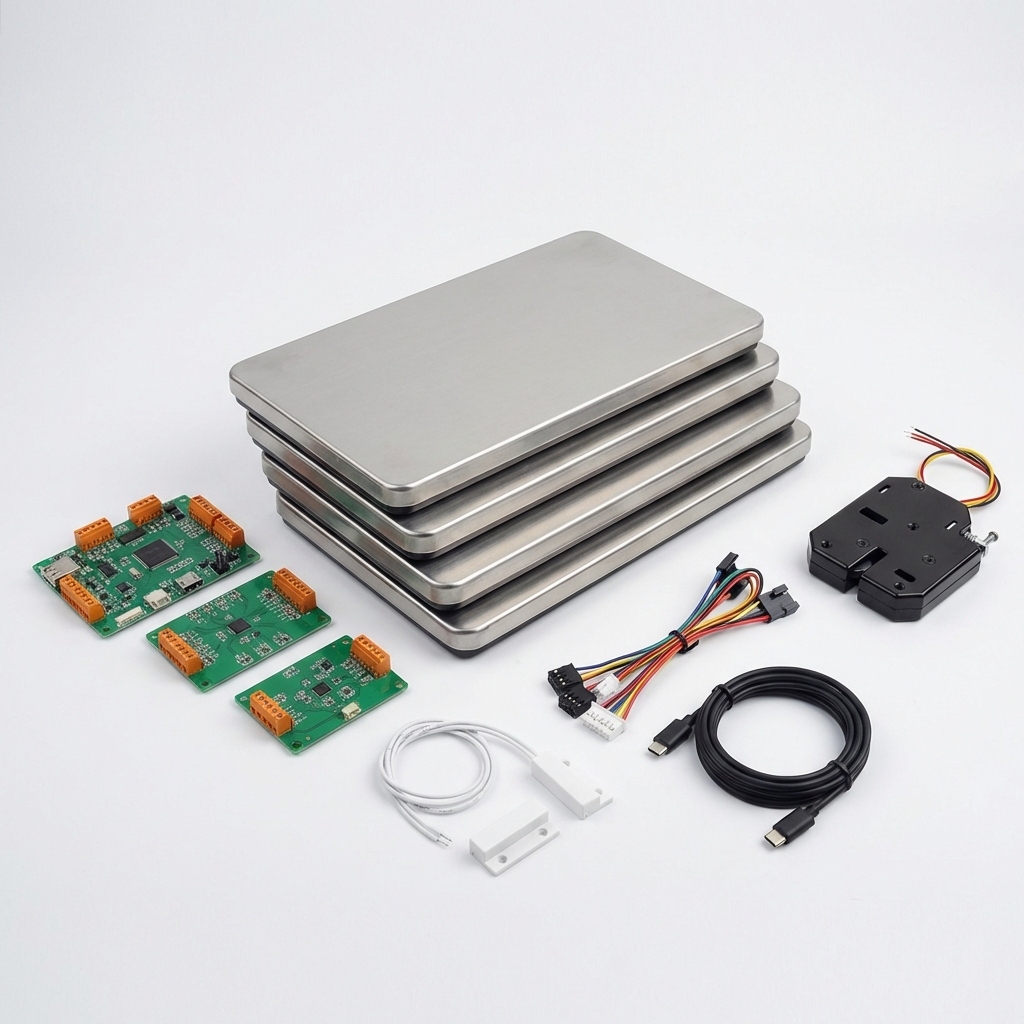

The "Venloop R&D Kit" contains everything you need to prototype your custom vending machine.
In the Box:
- • 1x Central Controller Interface (USB-C to Venloop Bus)
- • 1x Hub Module (3 Lock Ports, Door Sensors)
- • 1x Solenoid Lock
- • 1x Door Sensor
- • 1x Node Module (4 Scale Ports, Temp Sensor)
- • 4x Scales (each with two load cells)
- • Wiring Harness
